AL 15 – External Mix

AL 15 – External Mix

The AL 15 series is a pressure-fed external mix flat fan spray nozzle
The external mix feature allows control of the atomization without changing liquid flow. The lighter the air pressure, the higher the atomization for a given liquid pressure (types 15-06 to 15-11). Types 15-01 to 15-05 are siphon type. The spray pattern is a function of pressure. The higher the air pressure, the longer the spray pattern (length D)

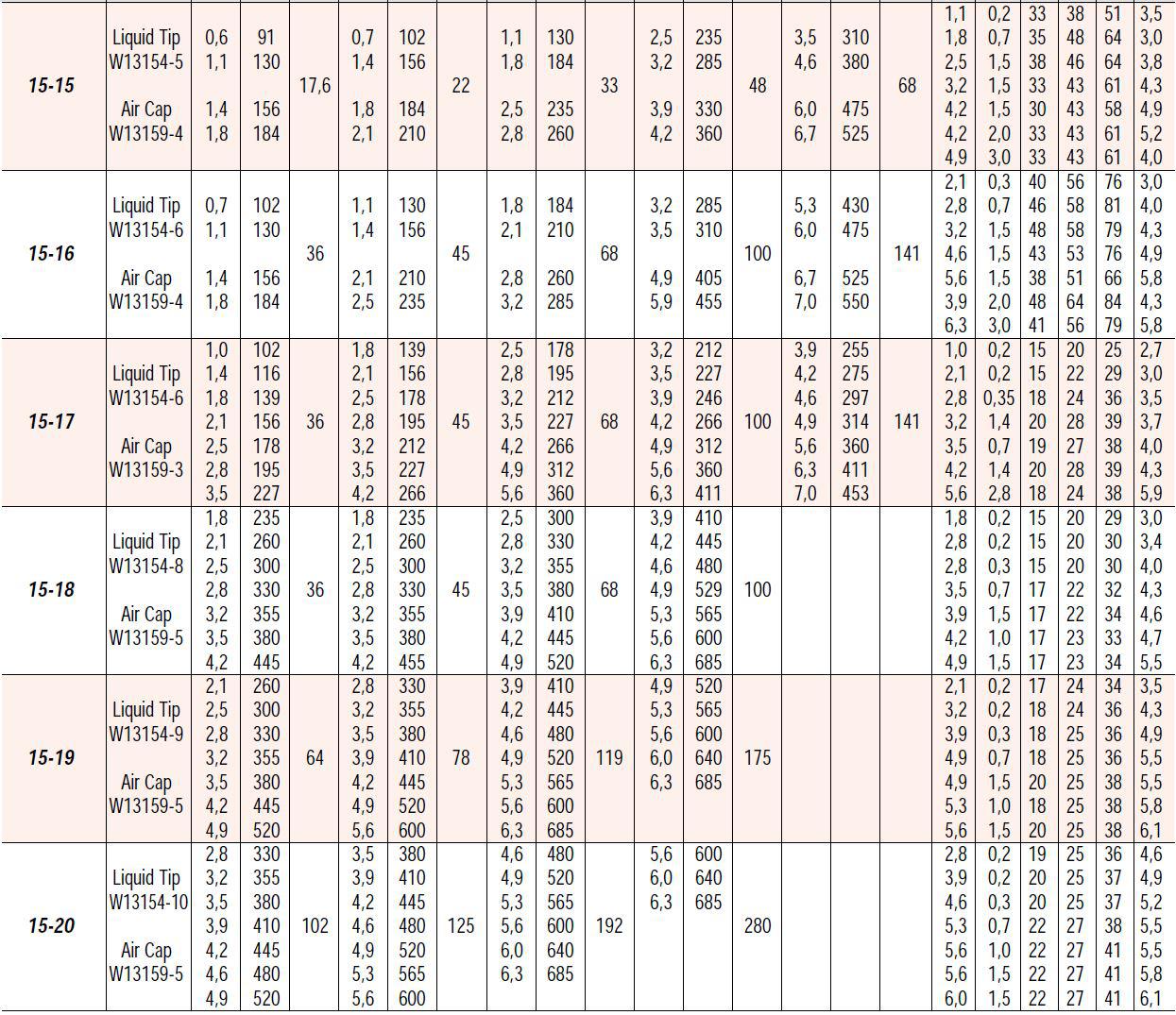

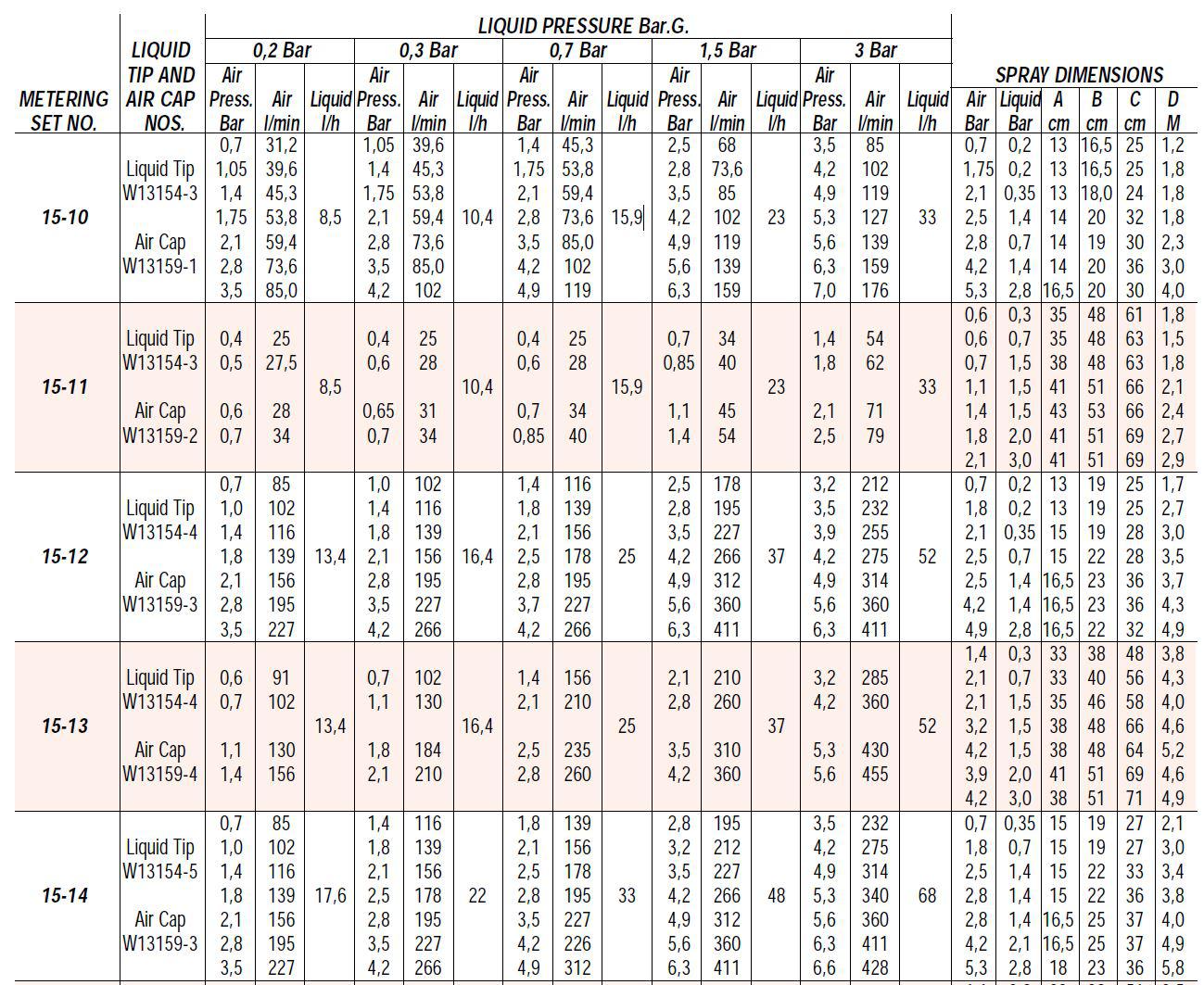

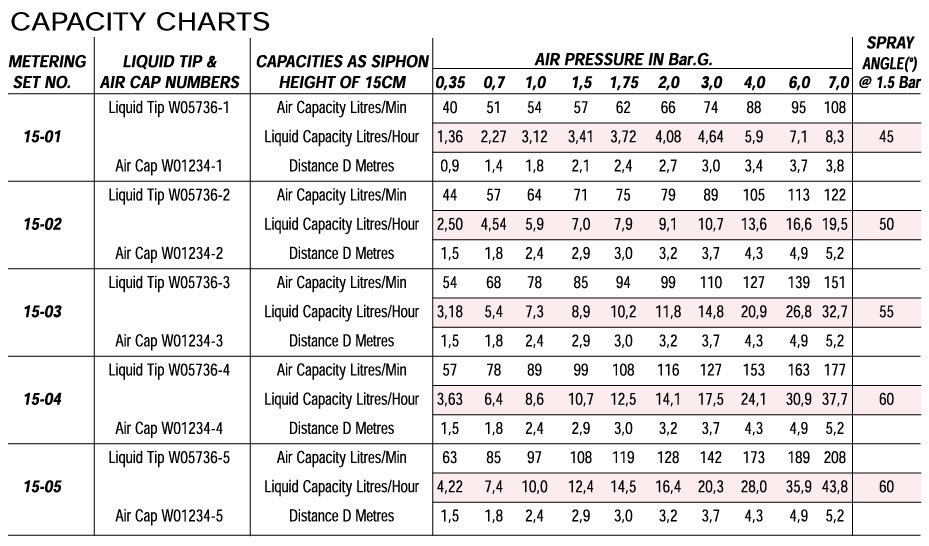

Capacity Charts
